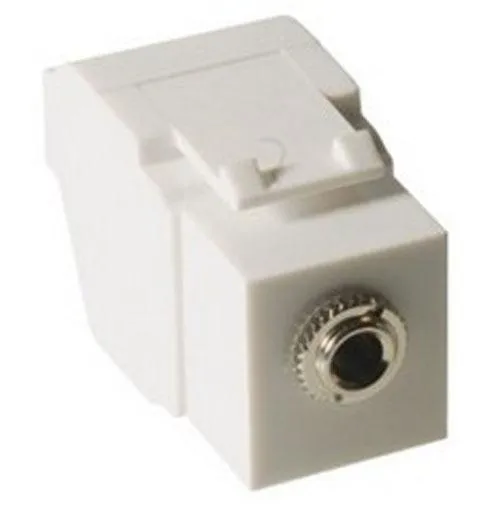

Name: 3.5mm Audio Modular Keystone Solderless, White
SKU: 217289

3.5mm Audio Modular Keystone Solderless, White

$ 40.22

$ 52.29

Title:

DefaultTitle

Unavailable

Please select combo product attributes

The combo subtotal is $,SAVE$

The 3.5mm (1/8 inch) modular jacks allows users to connect to headphone, microphone, infrared repeater devices, sound cards, and mp3 players from remote locations. The keystone jacks may be used in two or three conductor applications. Rear push-pin design allows for simple, fast connections to UTP cable or any 22-24AWG wire. This device is intended to provide easy installation of female 3.5mm modular jacks into any wallplates and Decorex inserts

Features:

Connect to headphone, microphone, sound cards, and MP3 player from remote locations

Fast fingertip insertion

Capable of UTP wiring in size of 22~24 AWG for simple connection

Works with all ICC faceplates, Decorex inserts, surface mount boxes, and blank patch panels

Specifications:

Material:
A. Connector body: Phosphor bronze
B. Plating: Nickel
C. Housing: ABS

Electrical:
A. Rating: DC 50V 0.5A
B. Contact resistance: 50M Ohm max.
C. Insulation resistance: 100m Ohm min.
D. Insertion force: 0.3Kgf - 3Kgf
E. Extraction force: 0.3Kfg - 3Kfg

Color: White
