Features

• (16) SE / DI Analog Inputs
• 12 Bits Input Resolution
• (2) 24-Bit Counter/Timers

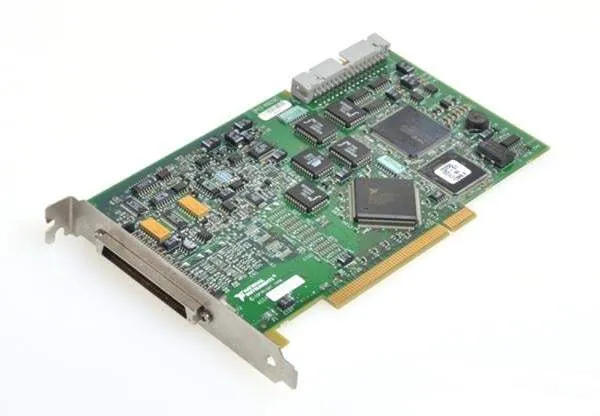

The National Instruments PCI-6023E 200 kS/s, 12-Bit, 16 Analog Input Multifunction DAQ use the National Instruments DAQ-STC system timing controller for time-related functions. The DAQ-STC consists of three timing groups that control analog input, analog output, and general-purpose counter/timer functions. These groups include a total of seven 24-bit and three 16-bit counters and a maximum timing resolution of 50 ns. The DAQ-STC makes possible such applications as buffered pulse generation, equivalent time sampling, and seamless changing of the sampling rate.
