Ransburg Deuce Cart
On-Site Finishing System
The #2 Gun’s unique design provides transfer efficiency of 95% or
greater, depending on coating.
Manufacturer: Carlisle Ransburg
Product Number: 79297-0X
Description:
The Ransburg Number #2 Gun is the most efficient applicator for on-site finishing. The Gun’s high transfer efficiency provides improved productivity, reduced operator fatigue and higher quality finishes. Reduced labor and material costs, as well as reduced clean up are just a few of the money saving benefits.

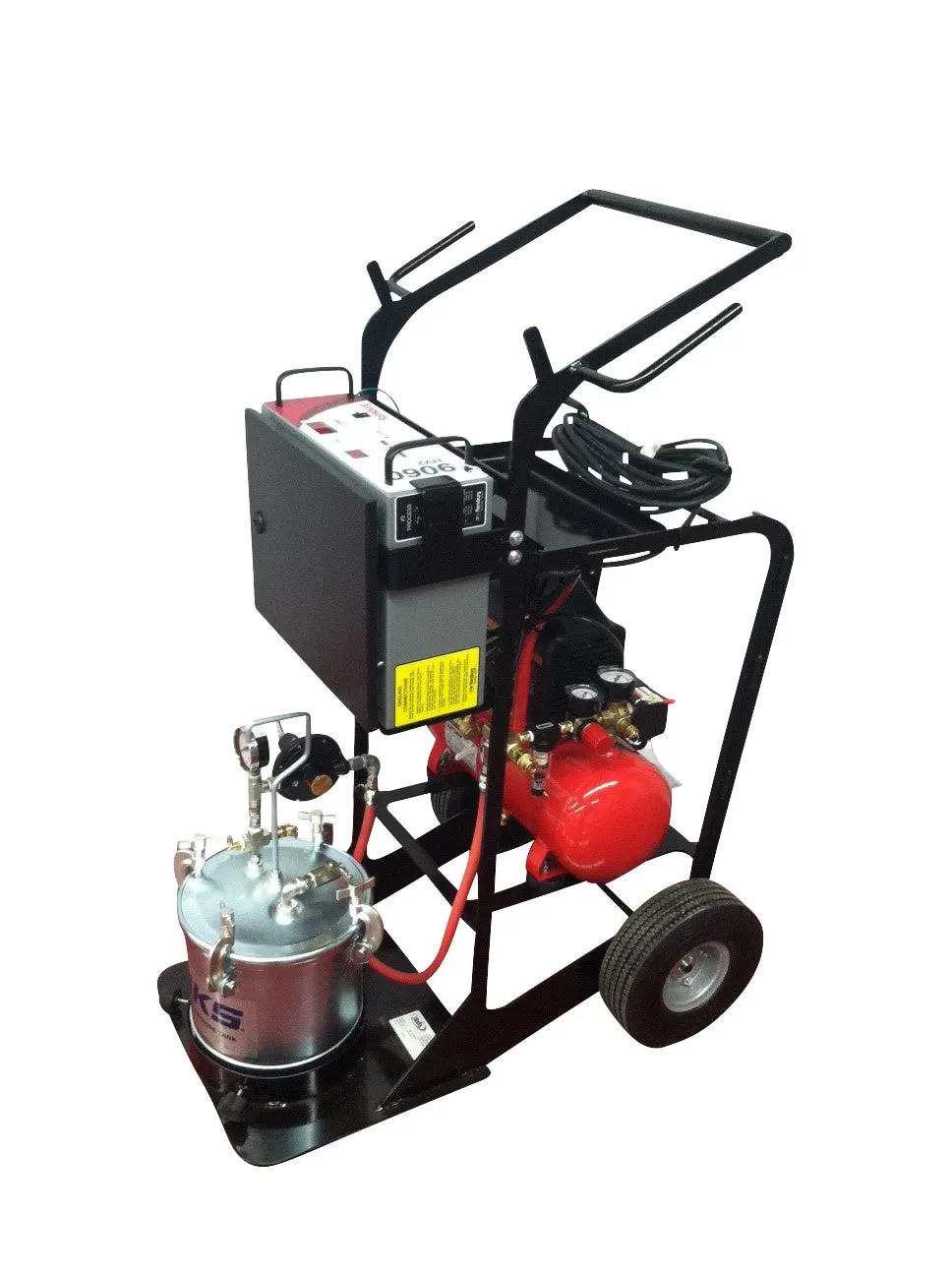

The portable Deuce Unit, utilizing the Number 2 Gun, power supply, cart and accessories, makes it well suited for a wide variety of applications. It goes where you need to go. Its portability makes it perfect for independent contractors, schools, hospitals and maintenance departments. Typical uses include metal furniture, lockers, fences, railings, tubing and file cabinets. The Deuce provides the most complete, on-site finishing unit. Simply put, the Number #2 Ransburg Gun could become the number one gun for your application!
The Deuce cart SE or LSX Packages come with everything you need to start painting today.
Features:
-
Improved Atomization
Gives a higher quality finish
-
Enhanced Spray Pattern Control
Deliver maximum flexibility from a small center outlet design
-
No High Fluid Pressure Required
Provides the user great application control
-
Trouble-Free Assembly
The straightforward design makes the unit easy for one person to handle
-

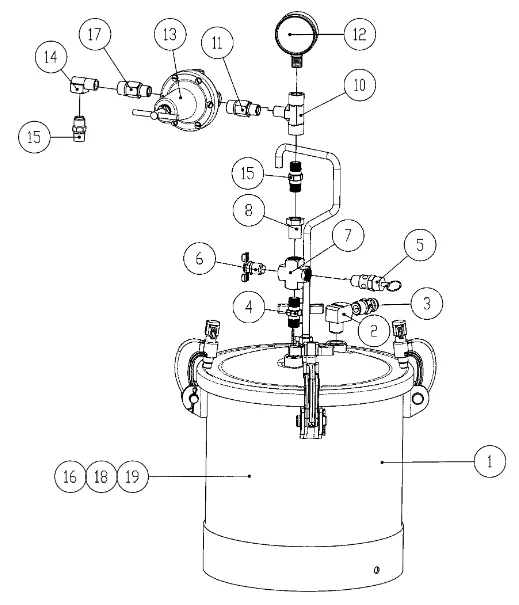

Accessible Pressure Pot
Simplifies use and maintenance
-
Lightweight Design
Allows user-friendly mobility and transportation
Coating Capabilities:
Coating delivery rate and application rate/speed are a function of bell size. There are three bell sizes available, 2 3/4”, 4” and 6”. Each has a maximum delivery rate and lends itself to certain applications.
|
Standard Bell Size |
4” |
|
Approximate Max Delivery Rate |
120 cc/min |
|
Application Rate |
10–12 sq ft/min |
|
Optional Bell Sizes |
2 3/4” |
6” |
|
Approximate Max Delivery Rate |
75 cc/min |
180 cc/min |
|
Application Rate |
5–7 sq ft/min |
15–18 sq ft/min |
|
|
|
|
|
|
|
79297-01 SE Package Includes:
|
79297-02 SE Package Includes:
|
|
79297-03 LSX Package Includes:
|
79297-04 LSX Package Includes:
|

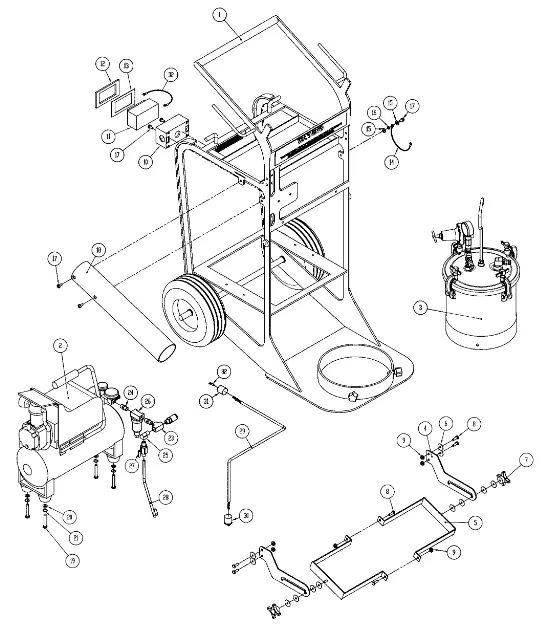

Deuce Cart Spare Parts List
